10m Olympic Target Systems

iScore 10m Targets Product Comparison and Pricing

iScore 10m Electronic Targets have been developed for use in 10m ISSF shooting disciplines and 10m, 15m and 25m incremental shooting, air pistol and rifle shooting and small calibre firearms.



iScore 10m
PERSONAL
iScore
10m

PRO
iScore
10m

BALLISTIC
PistolOnly One
Both
Both
RifleOnly One
Both
Both
Connection Type
Cable
10m
Cable/Wifi 10mCable/Wifi 25m
SoftwareBasicProPro+
Light
LEDLEDLED
Display
No18,5"18,5"
Operating System
W7/10W7/10W7/10
Paper Rolls
5 pieces
(9cm)
10 pieces
(9cm)
10 pieces
(19cm)
Mask100
pieces
500
pieces
1000
pieces
FPSNoNoYes
Ballistic Mode
NoNoYes
Armor
3mm3mm6-10mm Hardox
BUY NOWBUY NOWBUY NOW

iScore 10m Targets General Specifications



High Accuracy and Advanced Technology Content


iScore products are developed by combining hardware and software features that include scientific and technological




iScore utilises closed room acoustic measurement technology for electronic scoring.


The unique iScore technology uses 4 acoustic sensors in a 10m target type. These sensors are placed on the axes of the target. It provides high accuracy thanks to specially developed "sensor data processing" software. iScore 10m target accuracy is 0.01mm. It provides accuracy in accordance with ISSF Standards.


iScore targets are tested with a unique three-stage verification method. iScore has developed two test simulators. These are Electronic and Virtual shooting simulators.

The accuracy of the electronic shooting simulator is very close to one hundred per cent. With this simulator, shots can be fired in many different areas. The locations of the shots are precisely detected with an error close to zero. In this way, electronic hardware and software verification is performed.


The virtual shooting simulator can fire hundreds of shots at the same point with a precision of >0.01mm. In all shots fired, iScore accurately gives the targets with an accuracy of 0.01mm! All shots are always in the same place.

As the last simple test, real shooting with ammunition and paralox error control is performed. iScore targets do not make mistakes.


iScore 10m targets use a closed room system. In other words, acoustic sensors are placed inside a room protected from the environment. Sensors are not affected by weather conditions. Dust, rain, snow, etc. do not reach the sensors and do not impair the performance of the sensor. The air inside the chamber does not move, which ensures optimum accuracy.


Closed chamber acoustic targets are still the best and most reliable way to create high power electronic targets.

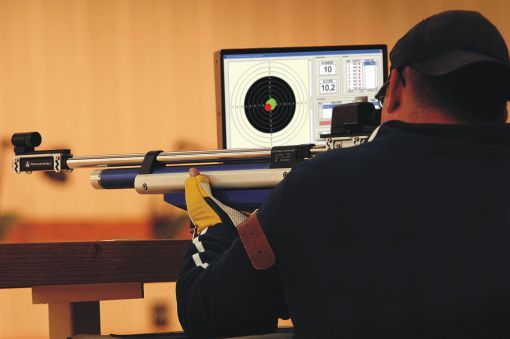

An intelligent software based on Windows (Win 7/8/10) has been developed for iScore 10m targets. iScore products are used with special computer models with touch screens suitable for indoor and outdoor use. Shooters can also use iScore 10m software on their personal computers. All iScore targets use adjustable LED backlight systems.






Industrial Strong Mechanical Design


Made from high quality profesional and replaceable mechanical parts

We do not use weak metal materials such as aluminium.

Rivets are never used in mechanical connections.
We strengthen all mechanical connections by welding.

Our targets use replaceable chrome-plated metal hinge and lock systems.

Most parts of our strong targets are made of zamak solid metal and steel.

Target frame and mounting parts are made of 2,5 - 6mm steel. Replaceable protection armours are made of 6 - 10mm Hardox steel.
Metal parts are painted with electrostatic epoxy powder paint and baked.

We have designed our products to be durable, reliable and can be used for many years.

All systems require very little maintenance. Mechanical parts can be easily replaced.

iScore electronic targets are designed for use in indoor and outdoor shooting ranges. Our targets are designed and manufactured in IP65 class.
